Scaffolding Product

• Application
• Other, Wall, slab, and column formwork system construction

• Color
• Silver or as required

• Components
• Other, Vertical Panel

• Constitute
• other, High-strength Aluminum Alloy

• Features
• High precision, lightweight, reusable, corrosion resistant, easy assembly

• Height
• Based on project specification

• Length
• 1500 mm to 3300 mm (customizable)

• Material
• Other , Aluminum Alloy (6061-T6/6063-T6 Grade)

• Pin
• Other, Quick-release panel pin system

• Platform Loading Capacity
• Up to 60 kN/m2

• Product Type
• Other, Aluminium Formwork Panel

• Size
• Custom sizes available

• Sleeve size
• Standard per system (custom options available)

• Surface Treatment
• Other, Anodized, Powder Coated

• Technique
• Other, Extruded, Welded

• Thickness
• 65 mm (typical system thickness)

• Weight
• 18-23 kg/m2 (depending on panel size and thickness)

• Width
• 50 mm to 600 mm (customizable)

• Application
• Other, Support for formwork, slabs, beams, ceilings in construction

• Color
• Red / Blue / as required

• Components
• Other, Inner tube, Outer tube, Screw jack, Base plate

• Constitute
• other, Steel structural pipe

• Diameter
• 48 mm (Outer tube), 40 mm (Inner tube)

• Features
• Corrosion Resistant, Heavy Duty, Reusable, Easy Installation

• Height
• Adjustable from 2 m to 3.5 m

• Length
• 1900 mm to 3500 mm (adjustable)

• Material
• Other , Mild Steel (MS)

• Pin
• Other, Steel Pin with chain attachment

• Platform Loading Capacity
• 1500 kg

• Product Type
• Other, Adjustable Scaffolding Prop

• Prop Head
• Other, Universal head (U-head or flat plate)

• Size
• Standard and customized sizes available

• Sleeve size
• 200 mm long, 60 mm diameter

• Surface Treatment
• Other, Painted / Powder Coated / Galvanized

• Technique
• Other, Welded

• Thickness
• 2.0 mm to 3.0 mm

• Weight
• 18 kg to 22 kg

• Width
• Adjustable as per design

• Application
• Construction

• Color
• black or brown

• Components
• Other

• Constitute
• other

• Diameter
• 16 Millimeter (mm)

• Height
• 600 Millimeter (mm)

• Length
• 600 Millimeter (mm)

• Material
• Steel

• Pin
• G Pin

• Platform Loading Capacity
• 50 Kilograms (kg)

• Product Type
• Scaffolding Platform

• Size
• 600 mm

• Surface Treatment
• Pre-Galvanized

• Technique
• ERW

• Thickness
• 16 Millimeter (mm)

• Weight
• 400-500 Kilograms (kg)

• Width
• 16 Millimeter (mm)

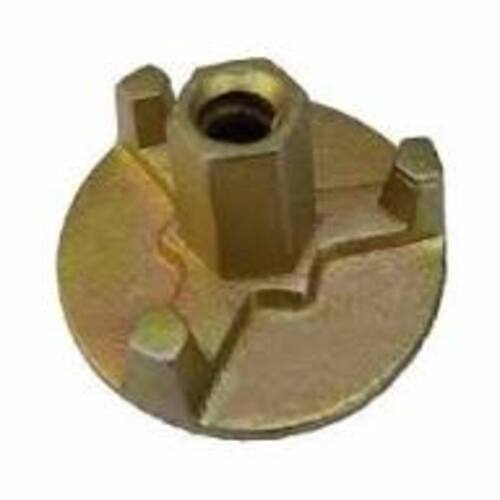

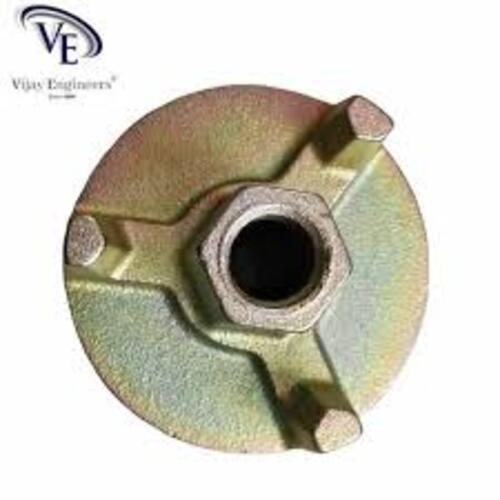

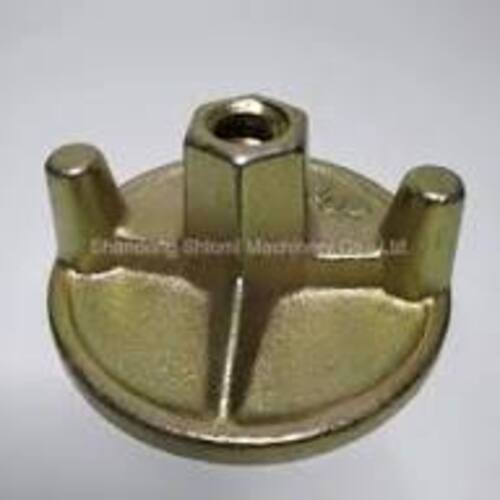

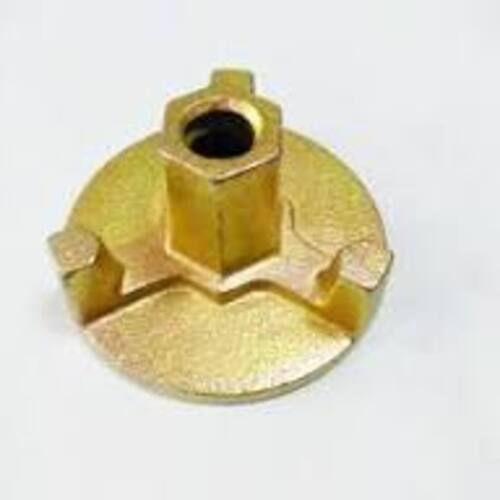

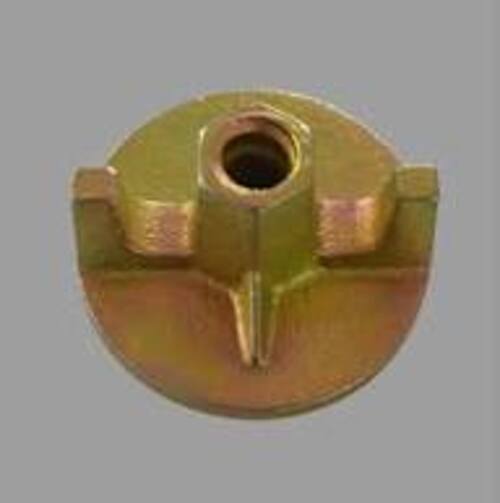

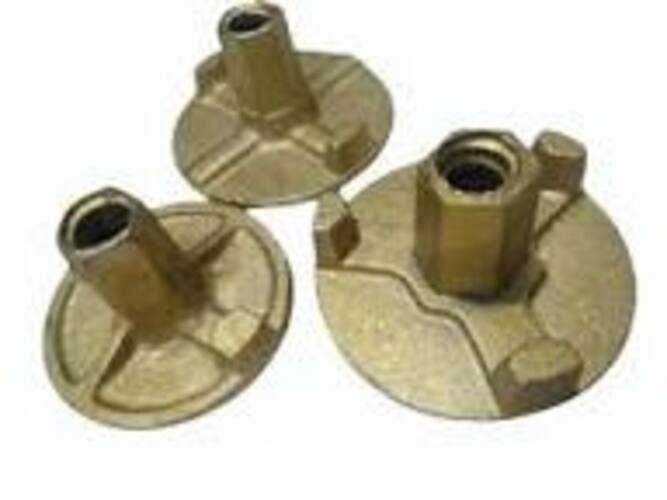

• Application
• Other, Construction, Formwork, Scaffold, Shuttering

• Color
• Silver/Golden (Plated)

• Components
• Other, Anchor Nut, Wing Nut

• Constitute
• other, Main nut body and welded wings

• Diameter
• 12 mm, 16 mm (customized available)

• Features
• Corrosion Resistant, Heavy Duty, Reusable

• Height
• 18 mm

• Length
• 50 mm

• Material
• Other , Mild Steel/Cast Iron

• Pin
• Other, Included (Hardened Steel)

• Platform Loading Capacity
• Up to 120 kN

• Product Type
• Other, Fastening Hardware

• Prop Head
• Other, Suitable for scaffolding applications

• Size
• Custom sizes available

• Sleeve size
• M12, M16

• Surface Treatment
• Other, Galvanized/Zinc Plated

• Technique
• Other, Hot Forged

• Thickness
• 6 mm

• Weight
• 95 g

• Width
• 45 mm

• Application
• Other, Scaffolding Platforms, Walkways, Construction Shuttering

• Color
• Silver (Galvanized) / Black (Painted)

• Components
• Other, Steel Mesh Grating Panels

• Constitute
• other, Mild Steel, Welded Grating Bars

• Diameter
• Customizable (Standard 25-32 mm rods)

• Features
• Non-slip, Anti-corrosive, Heavy Load Bearing, Reusable

• Height
• 25 mm to 50 mm

• Length
• 900 mm to 2400 mm

• Material
• Other , Mild Steel (IS 2062 Grade)

• Platform Loading Capacity
• 350 kg to 500 kg per sq. mtr.

• Product Type
• Other, MS Shuttering Jali/Walk Way Grating

• Size
• Standard and Custom Sizes Available

• Surface Treatment
• Other, Hot Dipped Galvanized / Painted / Natural

• Technique
• Other, Welding

• Thickness
• 3 mm to 6 mm (applicable to mesh/plate)

• Weight
• Variable, depends on size (e.g., 18-36 kg per panel)

• Width
• 300 mm to 600 mm

• Application
• Other, MIVAN Aluminium formwork, metal and plastic shuttering

• Color
• Light Yellow

• Components
• Other, Specially blended mineral oil base with chemical additives

• Constitute
• other, Oil, Emulsifiers, Chemical Agents

• Features
• Non-staining, easy release, increases formwork life

• Material
• Other , Blend of refined mineral oils and surface-active agents

• Product Type
• Other, MIVAN SHUTTERING OIL

• Size
• Available in multiple pack sizes

• Surface Treatment
• Other, Prevents concrete adhesion, smooth demoulding

• Technique
• Other, Form-release chemical forming oil

• Application
• Other, Lubrication of Mivan wall ties and shuttering accessories

• Color
• Light Yellow

• Components
• Other, Specialized lubricating compounds

• Constitute
• other, Petroleum-based with performance additives

• Features
• Anti-corrosive, enhances equipment life, highly adhesive, non-staining, water-resistant

• Material
• Other , Premium-grade lubricants

• Product Type
• Other, Industrial Grease

• Size
• Standard container sizes

• Surface Treatment
• Other, Smooth, oily finish

• Technique
• Other, High-performance lubrication

• Weight
• 500 gm (typical pack)
